Hydraulics Valves
Ball Valve (2 Way / 3 Way) © - Type, L-Type)
| Size | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” |
| Working Pressure (bar) |
500 | 500 | 400 | 300 | 280 | 250 | 220 | 200 |
| Max. Flow (lpm) |
10 | 20 | 30 | 80 | 120 | 180 | 280 | 400 |
- Material - carbon Steel / Stainless Steel
- Ball Seal - POM / Peek / PTFE / GFT / CFT
- Body & Steam Seals - PTFE / NBR / FPM
- Temp. Range -40°C to 200°C
Inline Check Valve / Subplate Type
| Model | C-06-T C-06-S |
C-80-T | C-10-T C-10-S |
C-16-T | C-20-T C-20-S |
C-25-T | C-30-T C-30-S |
| Connection BSP(F) |
1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” |
| Max. Flow (lpm) |
10 | 20 | 30 | 80 | 120 | 200 | 280 |
- Tube connection check valve RHD, RHV & RHZ available in 6mm to 42mm.
- Steel poppet type construction.
- Max. working pressure 350 bar.
- Choice of cracking pressure 0.5 to 15 bar.

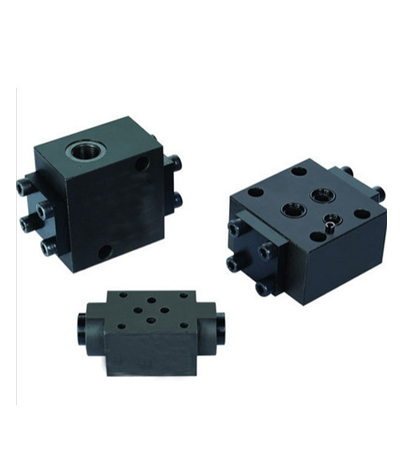

Pilot operated Check valve
| Model | CI-10T CI-10S |
CI-20T CI-20S |
CI-30T CI-30S |
MODULAR | |
| CIM-06 | CIM-10 | ||||
| Connection BSP(F) |
1/2” | 1” | 1 1/2” | ---- | ---- |
| Max. Flow (lpm) |
80 | 160 | 350 | 30 | 60 |
- Steel poppet type construction
- Prevents flow in reserve direction
- Max. working pressure 350 bar
- Type : Threaded / Subplate / Modular
Flow Control & Check Valve
| Model | DV-08 DRV-08 |
DV-10 DRV-10 |
DV-12 DRV-12 |
DV-16 DRV-16 |
DV-20 DRV-20 |
TCM-06 | |
| TCM-06 | TCM-10 | ||||||
| Connection BSP(F) |
1/4” | 3/8” | 1/2” | 3/4” | 1” | ---- | ---- |
| Max. Flow (lpm) |
10 | 20 | 40 | 70 | 120 | 30 | 60 |
- Integrated check valves allows reversed free flow from outlet to inlet.
- Max. Working Pressure 350 bar.
- Type : Threaded / Modular

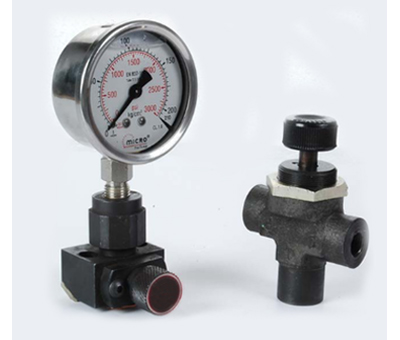

Gauge Isolator Valve
| Model | JT-200 ML | JT-200 M | GIVS | GIVS |
| Port Connection BSP(F) | 1/4” | 1/4” | 1/4” | 3/8” |
- Working : Push to read
- Type : Threaded / Modular
- JT-200 M : without Lock
- JT-200 ML ; with Lock

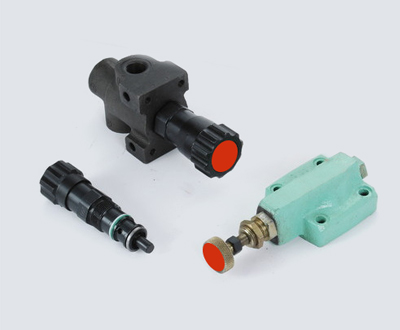

Direct Operated Pressure Relief Valve
| Model | DPRH-60 | DPRH-10 | DPRH-20 | YBG-01 |
| Max. Working Pressure (bar) |
315 | 315 | 315 | 315 |
| Max. Flow (lpm) | 30 | 80 | 160 | — |
- Direct acting with guided cushioned poppet.
- Available in cartridge, threaded & subplate type.

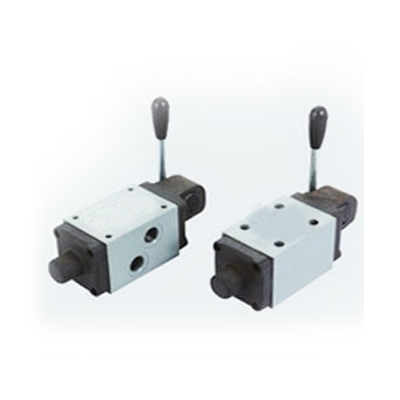

Direction Control Valve
| Model | 4D 10G*** |
| Max. Working Pressure (bar) |
Port P, A & B ...... 315 Port T .................100 |
| Max. Flow (lpm) | 100 |
- Completely encapsulated control mechanism for protection
- Five chamber design.
- Wide variety of Spools available in suplate / threaded model.
- Spool available A, C, D, E, G, H, J.
Needle Valve / Shut Off Valve
- MS & SS bar stock, screwed Bonnet, metal to metal construction
- Variety range of end connection include 1/4” to 1” BSP.
- Maximum Pressure 350 bar.
