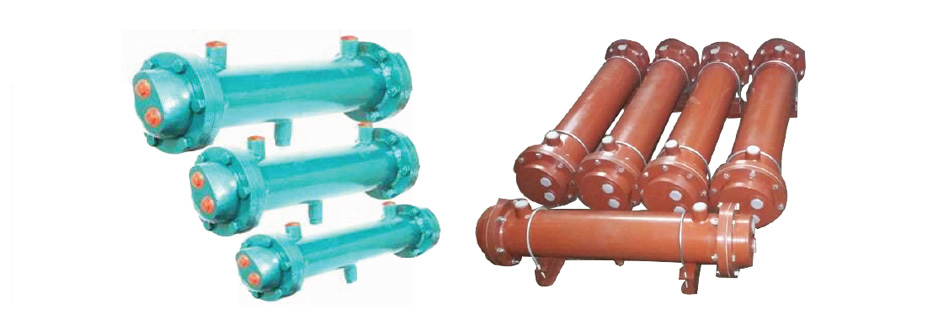

Heat Exchanger / Oil Cooler
Hydraulic India make Oil Coolers are having a range of manufacturing upto 2500 LPM oil flow rate (4,50,000 Kcal/Hr. ). Normally oil cooler are available from 3/8” diameter copper tubes. Though these oil coolers are compact in size and perhaps with lower prices but it is easily blocking by dirt and scaling inside the copper tubes. In our Oil cooler we use 5/8” diameter tubes to avoid this big issue. You will definitely rewarded with less maintenance and longer life of Oil cooler.
| Model | Shell OD | LPM | Coupling size of Oil Connection |
Coupling size of Water Connection |
Nos. of Copper tubes |
Total length End to End |
|---|---|---|---|---|---|---|
| PHE1 | 4” | 14 | 3/4” | 3/4” | 6 | 20” |
| PHE2 | 4” | 18 | 3/4 | 3/4 | 6 | 24” |
| PHE3 | 4” | 23 | 3/4” | 3/4” | 6 | 26” |
| PHE4 | 4.5” | 32 | 3/4” | 3/4” | 8 | 24” |
| PHE5 | 4.5” | 36 | 3/4” | 3/4” | 8 | 26” |
| PHE6 | 4.5” | 41 | 3/4” | 3/4” | 10 | 26” |
| PHE7 | 5” | 45 | 3/4” | 3/4” | 10 | 26” |
| PHE8 | 4.5” | 50 | 3/4” | 3/4” | 8 | 30” |
| PHE9 | 5” | 54 | 3/4” | 3/4” | 10 | 30” |
| PHE10 | 5” | 68 | 3/4” | 3/4” | 10 | 36” |
| PHE11 | 5” | 77 | 3/4” | 3/4” | 12 | 36” |
| PHE12 | 6.5” | 86 | 1” | 1” | 12 | 30” |
| PHE13 | 6.5” | 90 | 1” | 1” | 16 | 30” |
| PHE14 | 6.5” | 99 | 1” | 1: | 12 | 36” |
| PHE15 | 6.5” | 104 | 1” | 1” | 16 | 36” |
| PHE16 | 6.5” | 113 | 1” | 1.1/4” | 16 | 42” |
| PHE17 | 6.5” | 135 | 1.1/4” | 1.1/4” | 16 | 48” |
| PHE18 | 6.5” | 158 | 1.1/4” | 1.1/2” | 16 | 54” |
| PHE19 | 6.5” | 180 | 1.1/4” | 1.1/2” | 16 | 60” |
