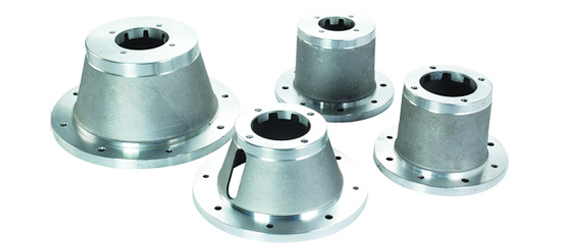

Aluminium Bell Housing

By using bell housings, shaft of motor and pump are aligned to each other optimally.
Material alumimium low weight with sufficient Strength.
Horizontal assembly possible with foot cum flange motor.
Bell housing material high graded aluminium pressure die cast.
Hydraulic India GJM Series aluminium bell Housing are precisely machined to reduce misalignment of coupled shaft.
Aluminium Bell housing size avaibale as per factory stock.

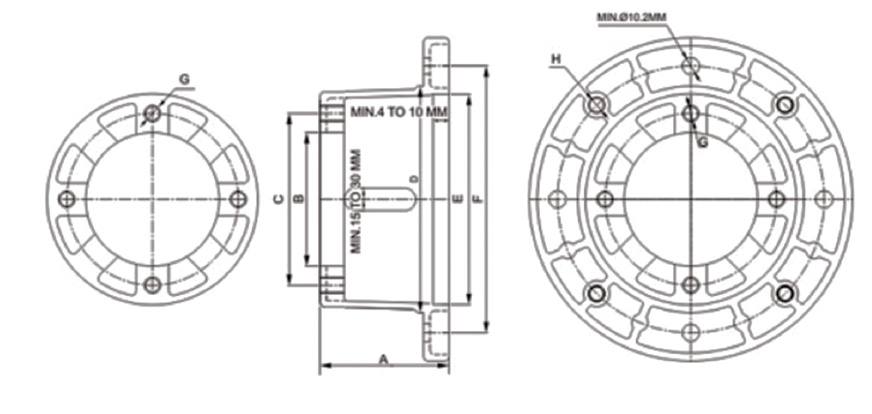

Dimensional Details :

Frame Size	Motor HP	A	B H8	C	D	E H8	F	G	H
80	0.75. 1	80	82.55	106.2	140	130	165	M10	M10
80, 90, S/L	0.75, 1, 1.5, 2	100	82.55	106.2	140	130	165	M10	M10
80,90, S/L	0.75, 1, 1.5, 2	130	82.55	106.2	140	130	165	M10	M10
80,90,S/L	0.75, 1,1.5,2	130	60	80	140	130	165	ɸ9	M12
100L /112M	3.5	110	82.55	106.2	180	180	215	M10	M12
100L / 112M	3.5	124	82.55	106.2	180	180	215	M10	M12
100L /112M	3.5	124	60	80	180	180	215	ɸ9	M12
132S / 132M	7.5, 10	145	82.55	106.2	230	230	265	M10	M12
132S / 132M	7.5, 10	145	101.6	145.9	230	230	265	M12	M12
132S / 132M	7.5, 10	145	60	80	230	230	265	ɸ9	M12
160M/L, 180M/L	12.5, 15,20,25,30	188/204	127	180.8	250	250	300	M16	M16
160M/L, 180M/L	12.5,15,20,25,30	188/204	101.6	145.9	250	250	300	M12	M16
160M/L, 180M/L	12.5,15,20,25,30	188/204	82.55	106.2	250	250	300	M10	M16
160M/L, 180M/L	12.5,15,20,25,30	188/204	60	80	250	250	300	ɸ9	M16

Note : This bell housing dimension are as per Hydraulic India gear Coupling and standard.
