Hydraulics Accessories

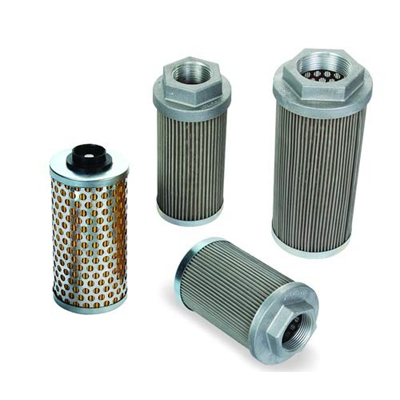

Suction Strainer
| Model | Sc3 02 |
Sc3 03 |
Sc3 05 |
Sc3 07 |
Sc3 10 |
Sc3 15 |
Sc3 20 |
Sc3 30 |
Sc3 40 |
Sc3 50 |
Sc3 75 |
Sc3 100 |
Sc3 150 |
| Connection BSP(F) | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 1 1/2” | 2” | 2” | 2 1/2” | 3” | 3” |
| Flow (lpm) | 8 | 12 | 20 | 25 | 40 | 60 | 80 | 120 | 160 | 200 | 300 | 400 | 600 |
- Reusable stainless steel 100 mesh standard.
- Sturdy all metal plated steel construction.
- Filtraction 149 microns.
- Paper filter also available as per custom built - Any standard.

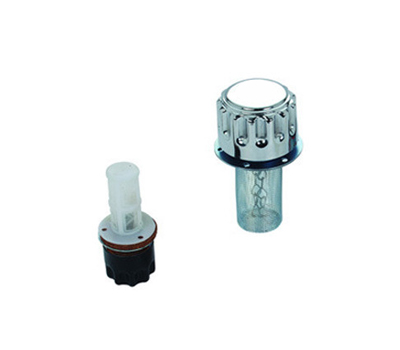

Filler Breather / Tank Breather
| Model | FSB-05 | FSB-25 | FSB-05 | FSB-25 |
| Connection BSP(F) | ---- | ---- | 1/4” | 3/4” |
| Flow (lpm) | 150 | 750 | 150 | 750 |
- Stainless Steel Cap. Vents underneath.
- Filtration 40 Microns Standard.
- Metal or Plastic Strainer Standard.

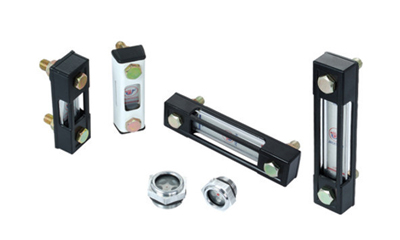

Fluid Level Indicator
- O Ring type Construction.
- fact Type : 3” & 5” between bolt centers.
- Knob Type : 1/4” to 1 1/2” BSP (M) Connection
- Body : Aluminium Pressure Die-cast.

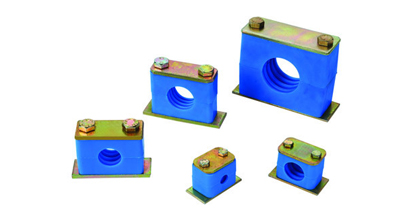

Pipe Clamps
- Clams according to DIN 3015.
- High density polytheme mould and mild steel plates construction.
- Heavy & Light duty.
- Range 6 mm to 324 mm

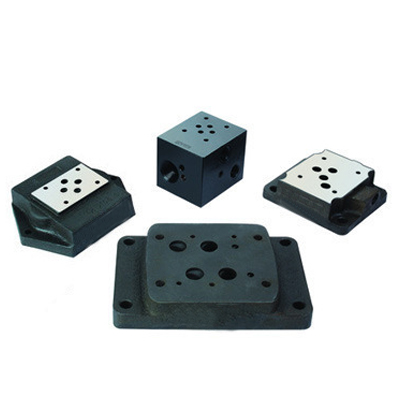

Manifold Blocks / Subplates
| Model | Connection (BSP) |
| NG-06 | 1/4”, 3/8” & 1/2” |
| NG-10 | 1/4”, 3/8” & 1/2” |
| NG-16 | 1/2” & 3/4” |
| NG-20 | 3/4” & 1” |
- Manifold block for any type custom built system are available.
- Any type of subplates for DC valve-Pre, Relief valve and flow control valve.

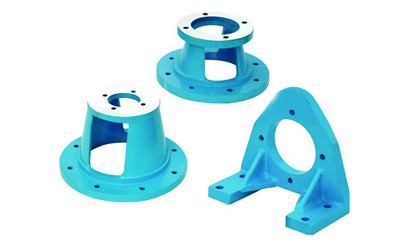

Bell Housing / L type Bracket
- Material - High graded C.I. Casting.
- Size : 0.5P to 75 HP
- Extension Bracket for Piston Pump to gear pump & Vane Pump.
- Suitable for gear Pump, Vane Pump, Piston pump, Screwed pump, Variable Piston Pump & Servo Pump.
- Also available coupling with bolt kit.

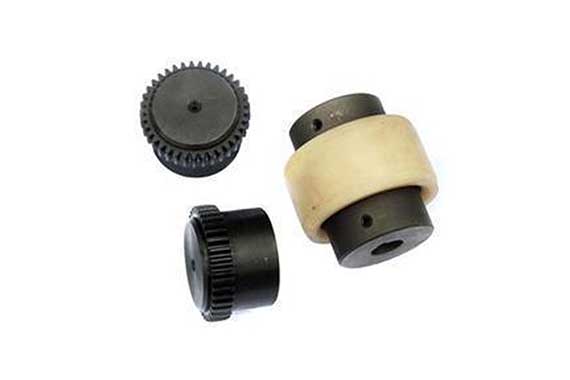

Gear Coupling
| Model | JT-19 | JT-28 | JT-38 | JT-48 | JT-65 |
| Pilot Bore (mm) | 07 | 10 | 12 | 15 | 20 |
| Suitable Motor HP | 0.25 - 1 | 1 - 5 | 5 - 10 | 10 - 30 | 40 - 60 |
- Material Steel hub & high graded plastic material sleeve.
We are one of the trusted manufacturers, traders and suppliers of Hydraulic Cylinder and Hydraulic Power Pack based in Ahmedabad, Gujarat. We are leading supplier of Hydraulic Power pack and Hydraulic Cylinder in Mehsana, Surat, Rajkot, Bhavnagar, Sanand, Baroda, Bharuch.
